Standard Series Wooden Blocks
Traditional Craftsmanship Meets Modern Strength
Our Standard Series Wooden Blocks combine timeless maritime craftsmanship with the strength and reliability required for today’s sailing needs. Crafted from durable ash wood and finished with meticulous attention to detail, these blocks offer an authentic aesthetic without compromising on performance.
Key Features:
-
High-Quality Ash Wood Construction
The body of each block is carved from premium ash wood, known for its strength, durability, and attractive grain. The wooden shells are glued, screwed, treated with Tung oil, and sealed with three layers of high-gloss marine varnish for exceptional protection against moisture and UV radiation.
-
Marine-Grade Stainless Steel Bindings (AISI 316)
Polished stainless steel bindings provide superior corrosion resistance, even in the harshest saltwater environments. Designed to endure high loads while preserving the block’s traditional appearance.
-
White Ertacetal Sheaves
Each block is fitted with high-strength Ertacetal (POM) sheaves that ensure smooth operation and low friction under load. This high-performance thermoplastic is ideal for marine applications due to its excellent wear resistance and dimensional stability.
-
Removable Stainless Steel Axle
The stainless axle is fixed to prevent rotation during use but can be quickly and easily removed—allowing for straightforward maintenance and inspection.
-
Traditional Look, Modern Performance
Our blocks are engineered for functionality and safety while preserving the historic design cherished by tall ship enthusiasts, classic boat owners, and traditional riggers.
Specifications:
-
Suitable for rope diameters:
8 mm to 26 mm -
Block types: Single, Double, and Triple sheave options available
-
Applications: Ideal for tall ships, classic yachts, wooden boat restoration, or any rigging requiring a classic aesthetic with modern reliability.
Need a custom size?
We can accommodate larger rope diameters or special design requirements.
for bespoke solutions tailored to your rig.

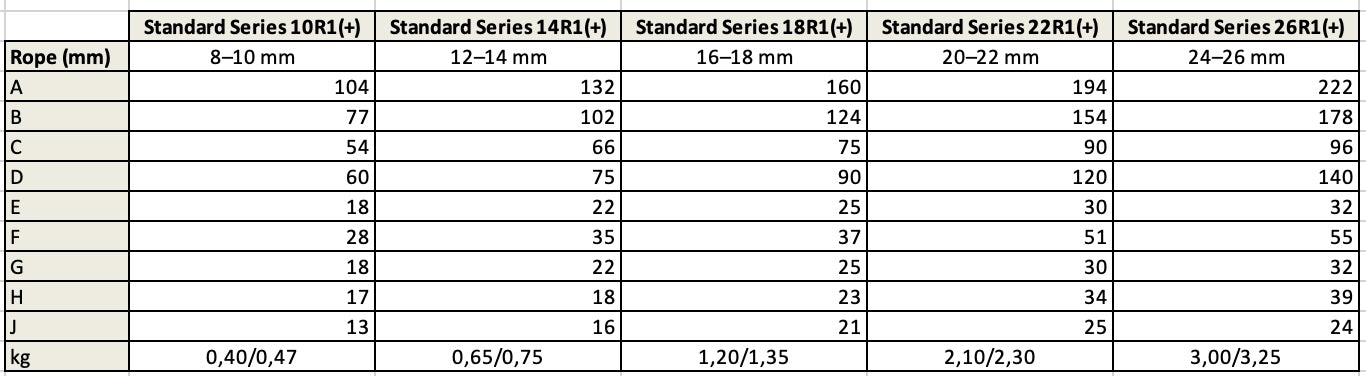

Dimensions per type:
