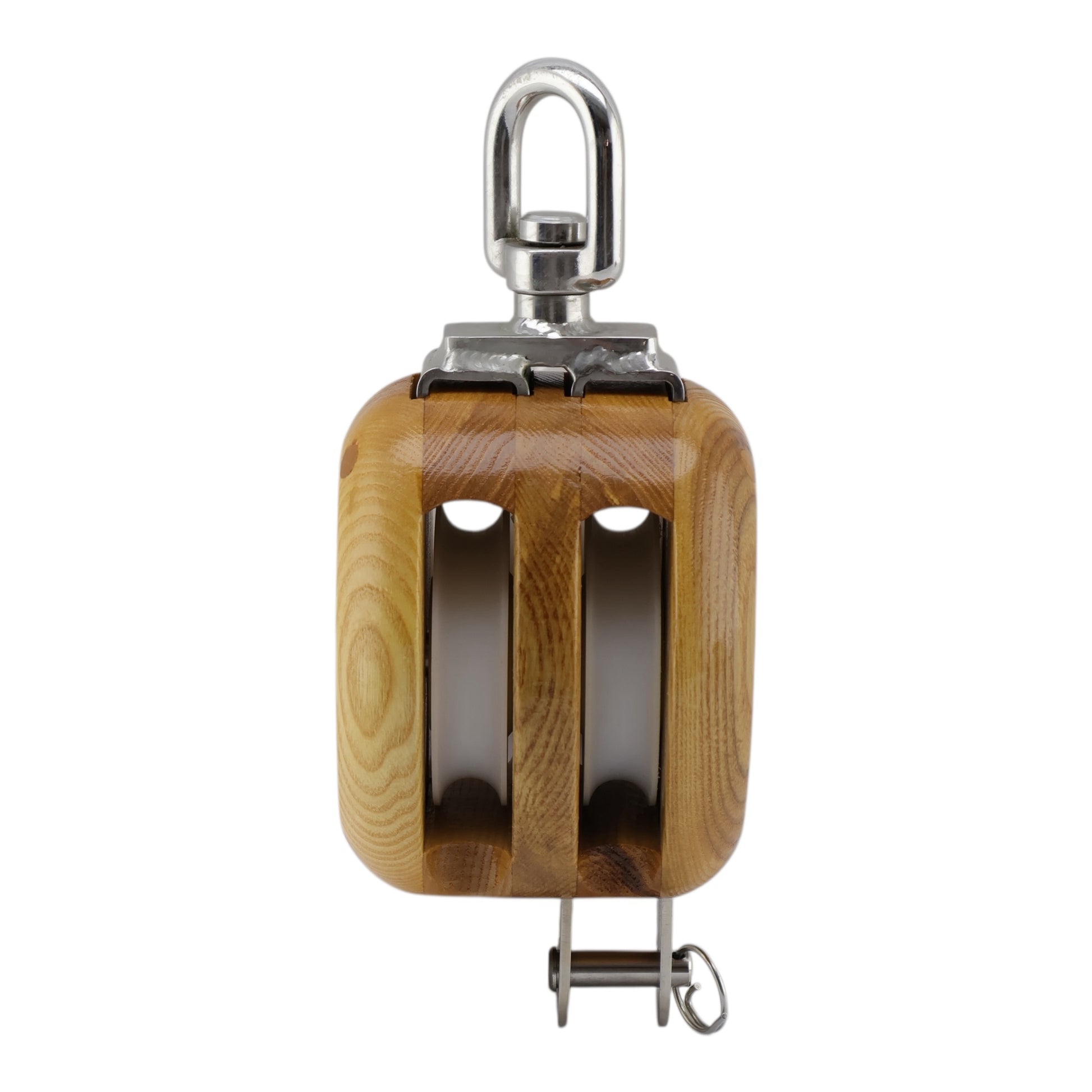

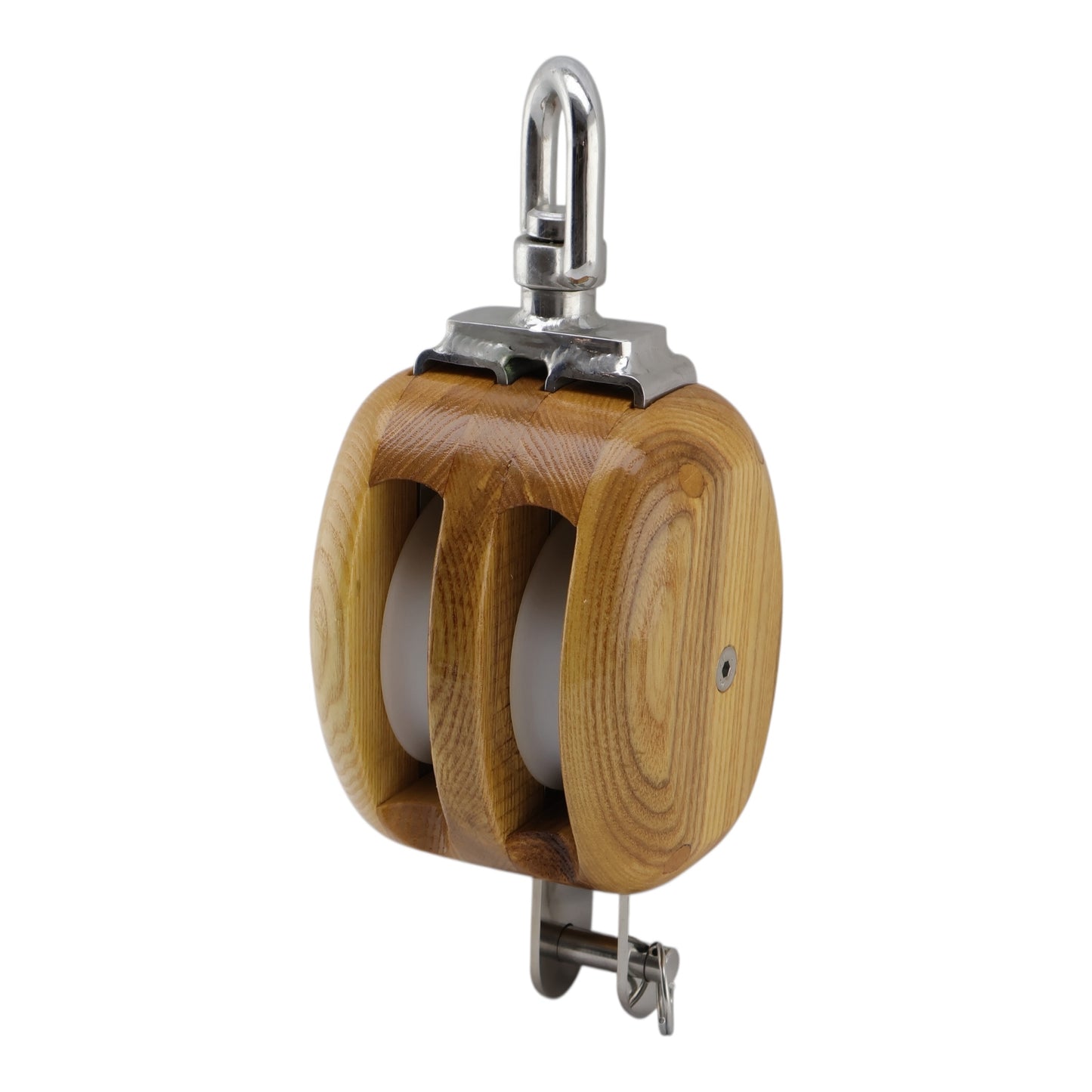

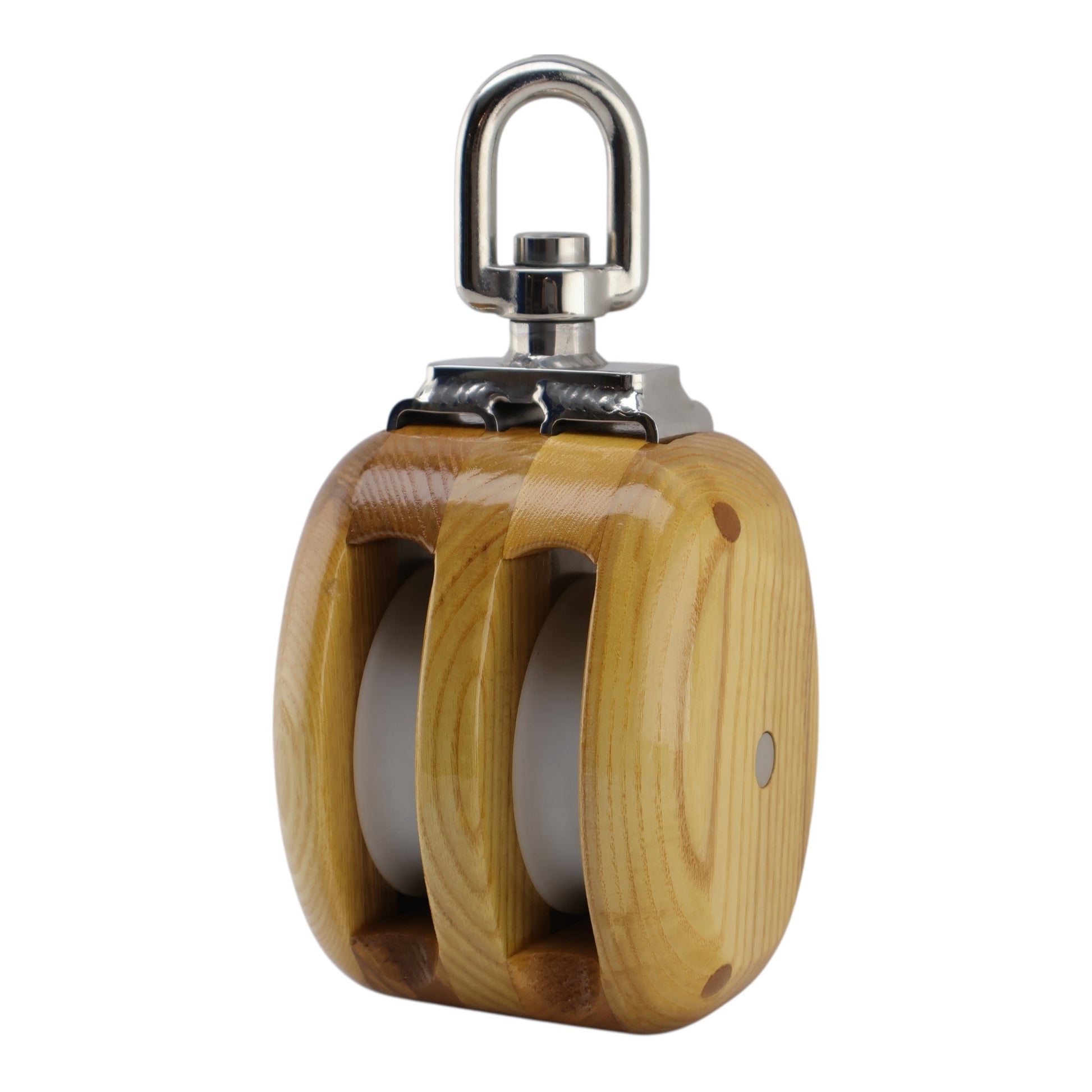

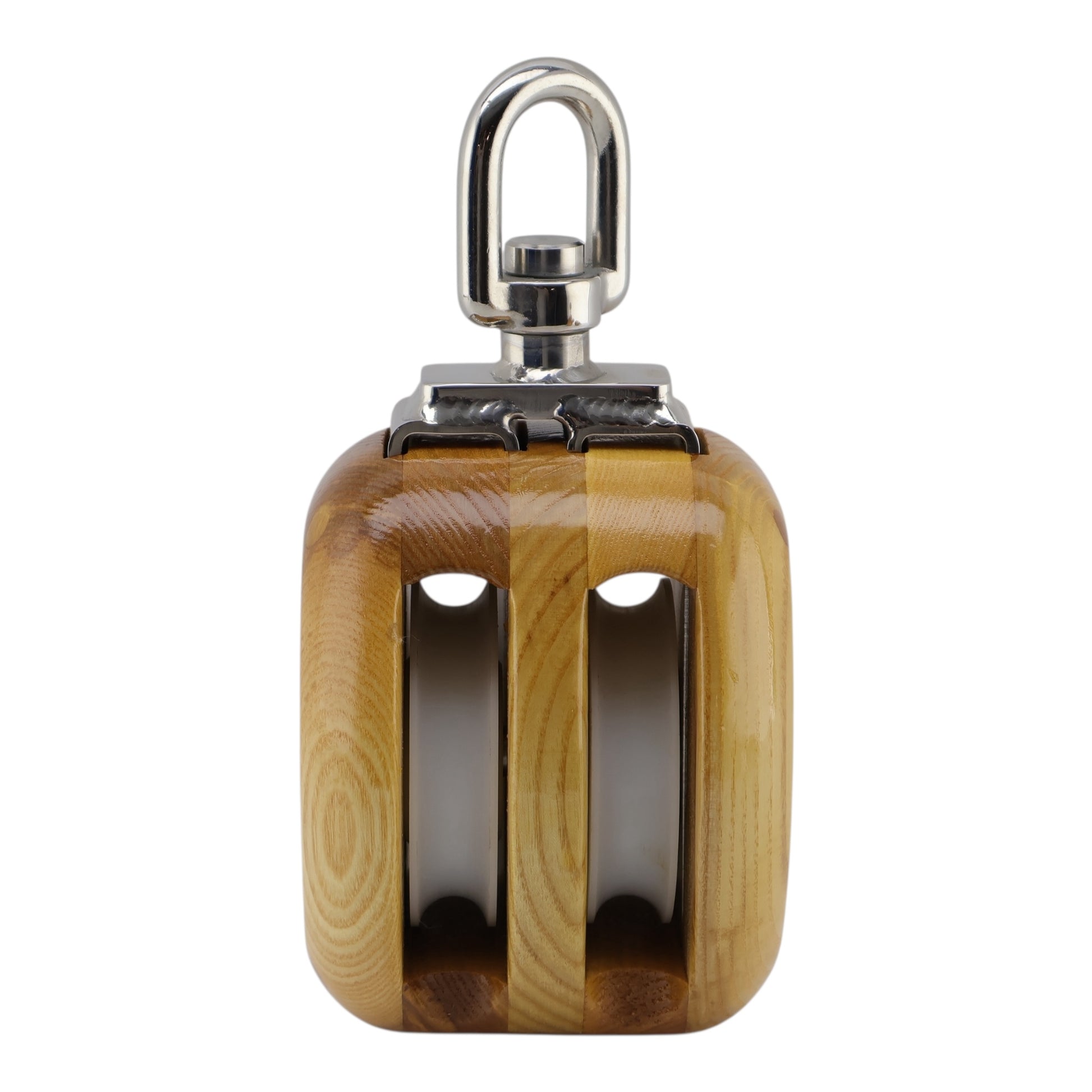

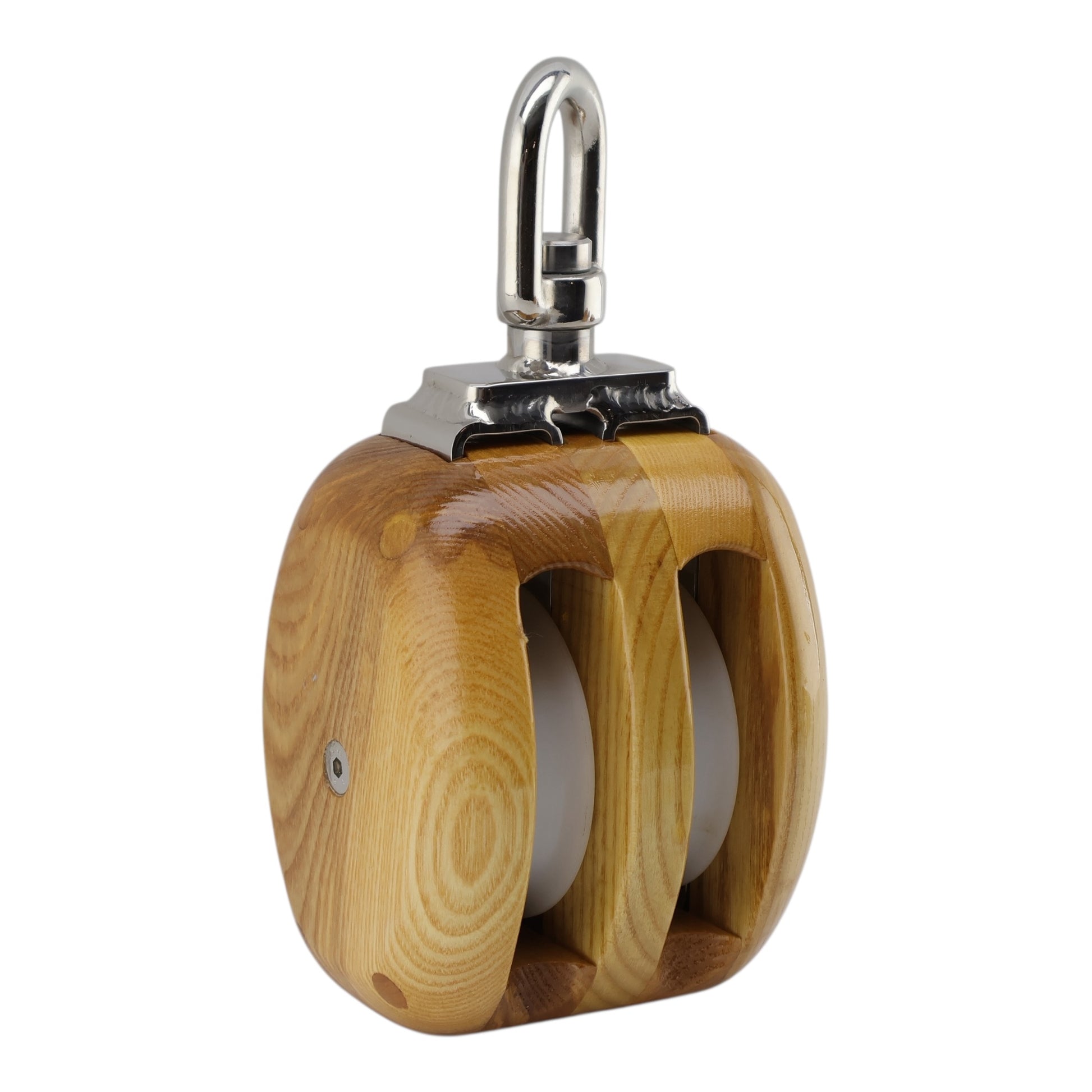

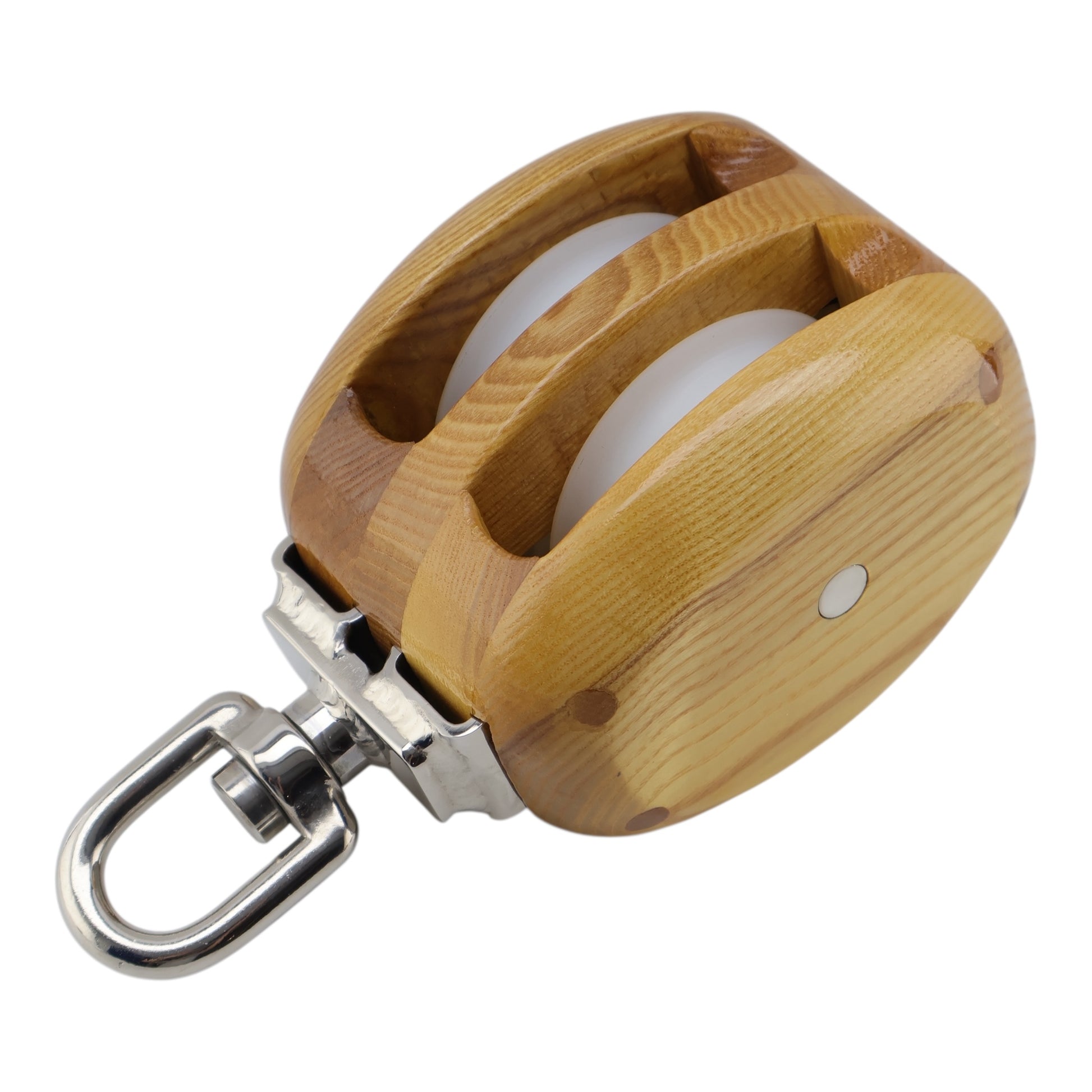

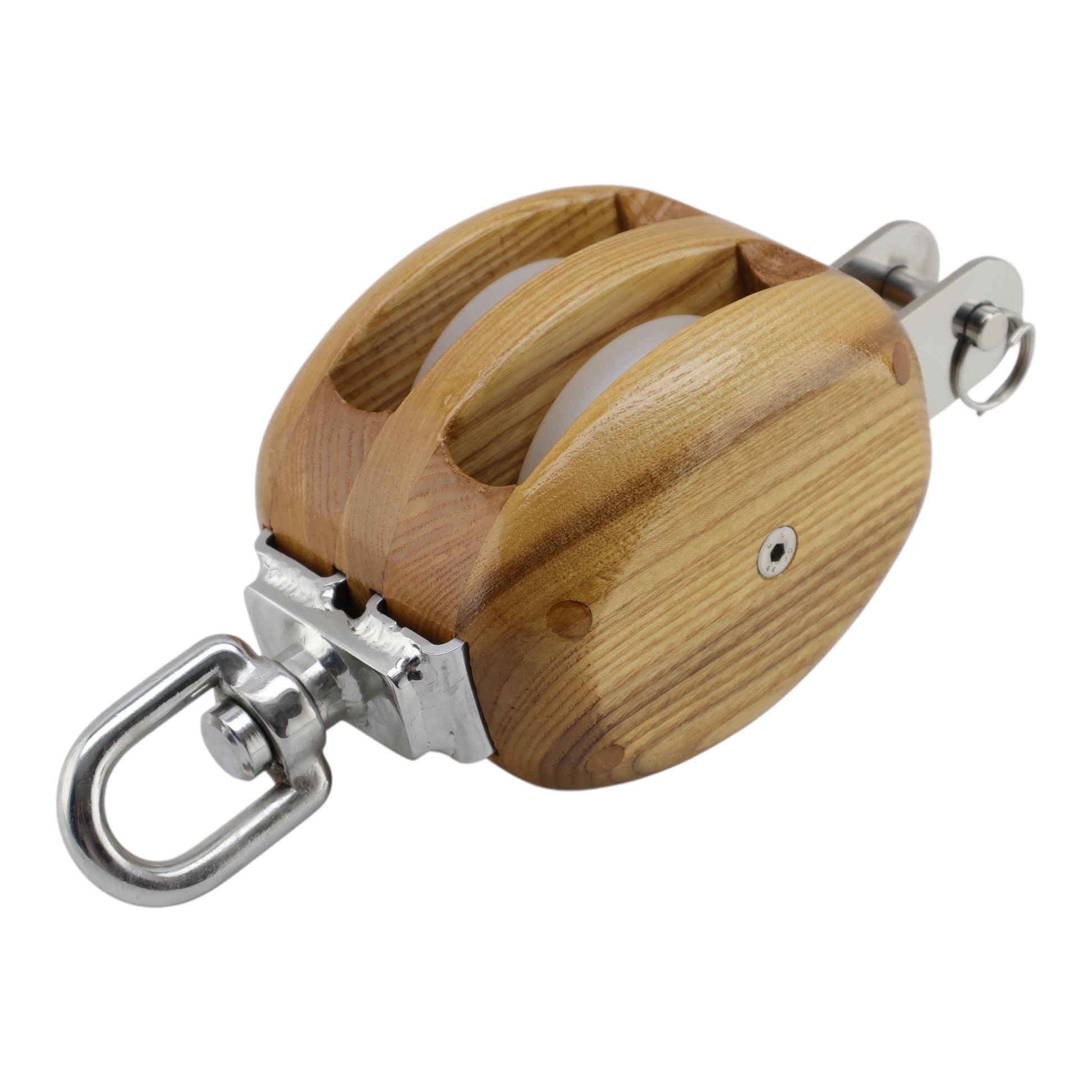

Wooden Block-Double Sheave Swifel-Standard Series
Wooden Block-Double Sheave Swifel-Standard Series
Couldn't load pickup availability
Traditional Swivel Blocks
Classic Craftsmanship Meets Modern Functionality
Our Traditional Swivel Blocks are designed for sailors who demand both authentic craftsmanship and modern performance. Constructed from premium ash wood and finished with meticulous care, these blocks provide a timeless maritime look while meeting today’s rigging requirements.
Equipped with a 360° swivel fitting, these blocks allow smooth rotation under load, making them ideal where flexibility and freedom of movement are essential.
Key Features
High-Quality Ash Wood Cheeks
Each block body is carved from durable ash wood. The cheeks are glued, screwed, treated with Tung oil, and sealed with three coats of high-gloss marine varnish for maximum protection against UV and moisture.
Marine-Grade Stainless Steel Bindings (AISI 316)
Highly polished stainless steel bindings deliver superior corrosion resistance, even in harsh saltwater environments, while preserving the traditional aesthetic.
White Ertacetal (POM) Sheaves
Fitted with high-strength Ertacetal sheaves for smooth operation and reduced friction under load. Known for excellent wear resistance and dimensional stability, perfect for marine use.
Removable Stainless Steel Axle
The stainless axle is fixed during use but can easily be removed for inspection and maintenance.
360° Swivel Head
The swivel fitting ensures the block can rotate freely, preventing line twists and allowing optimal alignment in dynamic rigging systems.
Specifications
-
Rope diameters: 8 mm to 22 mm
-
Connection: Swivel fitting – full 360° rotation
-
Types: Single and Double sheave options available
Applications
Ideal for:
-
Classic sailing yachts and tall ships
-
Mainsheets, halyards, and control lines
-
Wooden boat restorations and traditional rigs
-
Any rigging system requiring rotation and flexibility
Custom Options
Need a special configuration or larger size? UB Shop also supplies custom-built swivel blocks tailored to your vessel’s requirements.
Equip your rigging with UB Shop Traditional Swivel Blocks – blending the beauty of classic design with the strength and efficiency of modern engineering.
for bespoke solutions tailored to your rig.

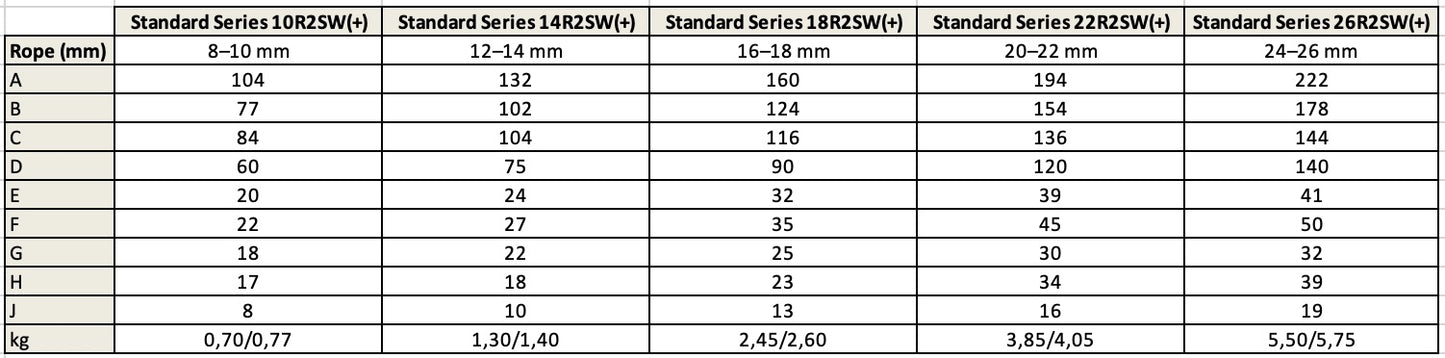

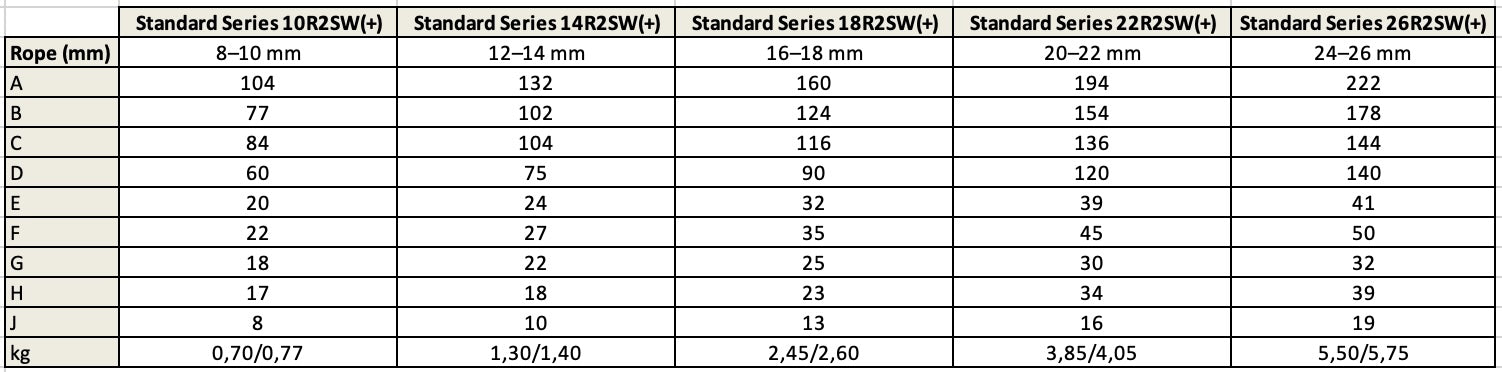

Dimensions per type:
